EVOS AC charging cables

High quality and robust.

EVOS' electric vehicle AC charging cable components are selected for their durability, high quality (IP54), and long life.

As standard, in Japanese market we offer a 5m length with a Type 1 plug certified under Japan's Electrical Appliance and Material Safety Act (PSE).

We can also provide different lengths (10m) and Type 2 or NACS type (Tesla standard plug) upon request.

Features

Hardware
  • Waterproof: IP54
  • Durable construction and long life
  • Available plug: Plug Type 1, Type 2 or NACS
  • Japan PSE certified (Type 1) (Japanese market)
Related products

Specification　
Cable Type 1

  • Type
    Type 1 (IEC 62196-2, SAE J1772) (single-phase)
  • Charging mode
    Mode 3, Case C
  • Cable length
    Approx. 5 m (option 10m)
  • Maximum output
    32A
  • Mating cycles
    Over 10000 cycles
  • Protection Rating
    IP65 (cable), IP44 (inlet plug) with protective cap
  • Operating temperature
    -30 °C - ＋50 °C
  • Compliance
    IEC 62196-2, SAE J1772, PSE certification (Japanese market)
  • Color
    Black
  • Weight
    Approx. 1.7 kg
  • Packaging
    Approx. 500 × 520 × 100 mm, approx. 2kg

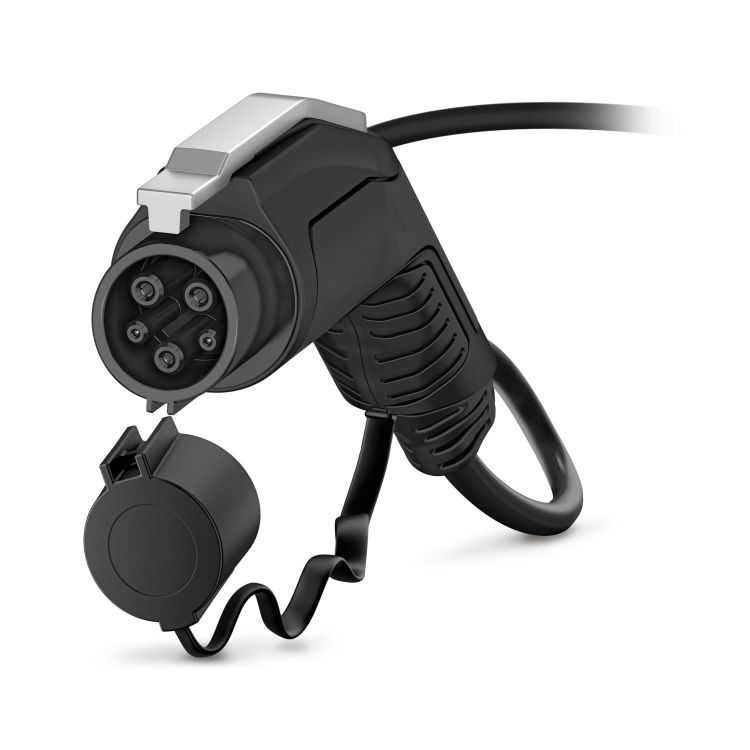

EVOS AC charging cable type 1

Cap

Dust protection cap

Connector

Type 1

Specification　
Cable Type 2

  • Type
    Type 2 (IEC 62196-2, SAE J1772) (Single-phase / three-phase)
  • Charging mode
    Mode 3, Case C
  • Cable length
    Approx. 5 m (option 10m)
  • Maximum output
    32A
  • Mating cycles
    Over 10000 cycles
  • Protection Rating
    IP65 (cable), IP44 (inlet plug) with protective cap
  • Operating temperature
    -40 °C - ＋50 °C
  • Compliance
    IEC 62196-2, SAE J1772
  • Color
    Black
  • Weight
    Approx. 1.7 kg
  • Packaging
    Approx. 500 × 520 × 100 mm, approx. 2kg

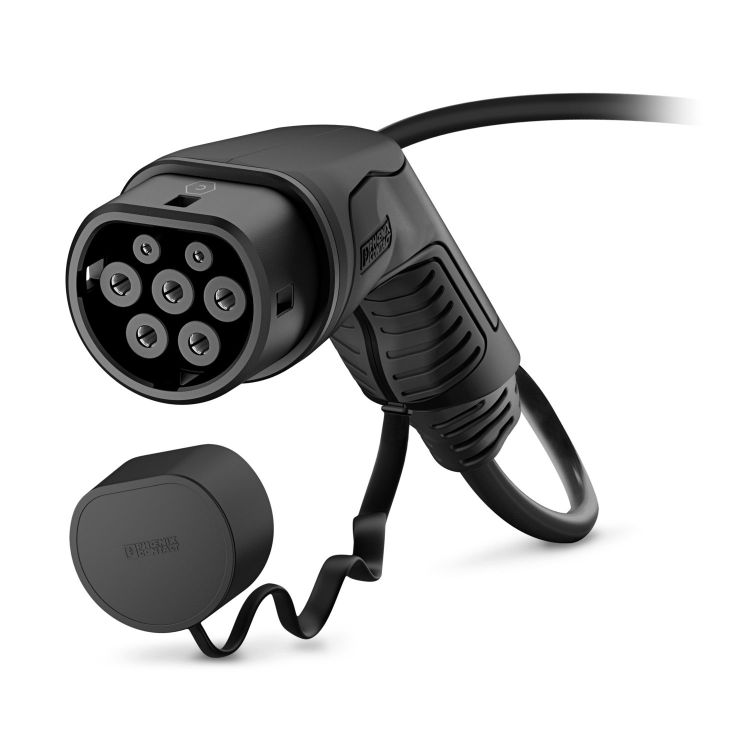

EVOS AC charging cable type 2

Cap

Dust protection cap

Connector

Type 2

Specification　
Cable Type NACS

  • Type
    NACS (テスラ), SAE J3400 （単相）、UHF信号ボタン付き
  • Charging mode
    Mode 3, Case C
  • Cable length
    Approx. 5 m (option 7.5 m)
  • Maximum output
    40A
  • Mating cycles
    Over 10000 cycles
  • Protection Rating
    IP65 (cable), IP44 (inlet plug)
  • Operating temperature
    -30 °C - ＋50 °C
  • Compliance
    SAE J3400, UL certification
  • Color
    Black
  • Weight
    Approx. 1.7 kg
  • Packaging
    Approx. 500 × 520 × 100 mm, approx. 2kg

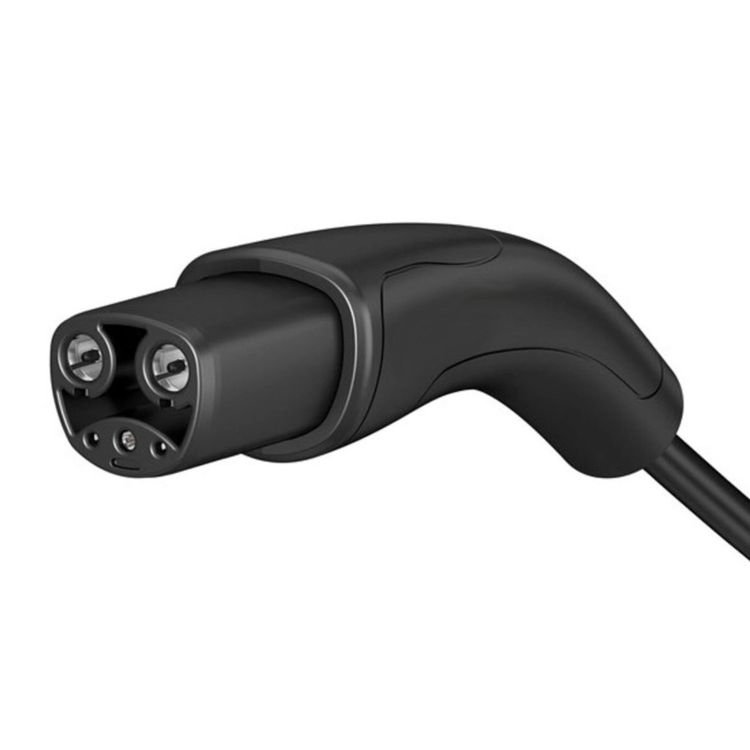

EVOSの電気自動車用AC充電ケーブルタイプNACS

プラグ

NACS（テスラタイプ）

UHFボタン付き

テスラ充電ポートの自動開閉用UHF信号ボタン
